Name: Estimated OWMS nitrogen load discharged by catchment

Display Field: HydrologicalCatchmentName

Type: Feature Layer

Geometry Type: esriGeometryPolygon

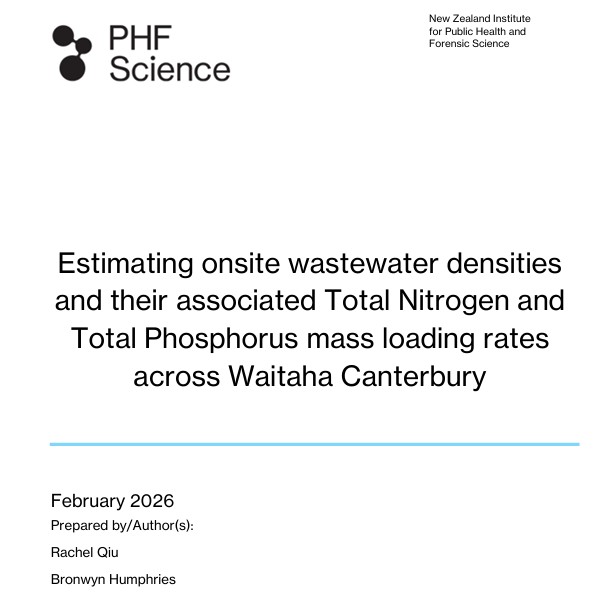

Description: PHF Science estimated the Total Nitrogen loading from OWMS discharges in each catchment using mapped OWMS locations (for consented and estimated OWMS) and applying assumptions from measured nitrogen concentrations in wastewater. Further details are documented in the PHF Science Report "report "Estimating onsite wastewater densities and their associated Total Nitrogen and Total Phosphorus mass loading rates across Waitaha Canterbury" by Qui and Humphries, February 2026.

Copyright Text: PHF Science

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 1323813.9687
YMin: 5004746.2036
XMax: 1690746.6157
YMax: 5361956.0705
Spatial Reference: 2193  (2193)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Class Breaks Renderer:
Field: SUM_TN_loading_per_year_kg
Min. Value: 4.559999942779541
ClassBreakInfos:
• Class Maximum Value: 1000
  Label: less than 1000
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [247, 244, 249, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
• Class Maximum Value: 5000
  Label: 1001 to 5000
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [212, 185, 218, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
• Class Maximum Value: 10000
  Label: 5001 to 10 000
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [223, 101, 176, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
• Class Maximum Value: 15000
  Label: 10 001 to 15 000
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [206, 18, 86, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
• Class Maximum Value: 90000
  Label: 15 001 to 90 000
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [103, 0, 31, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
Transparency: 0
Labeling Info:
Label Placement: esriServerPolygonPlacementAlwaysHorizontal
Label Expression: [HydrologicalCatchmentName]
Use Coded Values: true
Symbol:
Color: [0, 38, 115, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: baseline
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 10
Font Family: Arial
Font Style: normal
Font Weight: bold
Font Decoration: none

Min. Scale: 100000.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• HydrologicalCatchmentName ( type: esriFieldTypeString, alias: Catchment Name, length: 100 )
• CatchmentGroup ( type: esriFieldTypeString, alias: Catchment Group, length: 3 )
• CatchmentGroupName ( type: esriFieldTypeString, alias: Catchment Group Name, length: 100 )
• AREA_HA ( type: esriFieldTypeDouble, alias: Area (ha) )
• CREATEDBY ( type: esriFieldTypeString, alias: Created by, length: 50 )
• ConsentsCatchmentNumber ( type: esriFieldTypeString, alias: Consents Catchment Number, length: 8 )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape_Length )
• Shape.STArea() ( type: esriFieldTypeDouble, alias: Shape_Area )
• SUM_TN_loading_per_year_kg ( type: esriFieldTypeDouble, alias: SUM TN loading (kg/year) )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
